Toilet Sewage Lifter

Toilet Sewage Lifter

The Toilet Sewage Lifter is a compact, high-efficiency wastewater lifting solution designed specifically for toilets located below the municipal sewer line or far from the main drainage system.

Product Introduction

Product Introduction



The Toilet Sewage Lifter is a compact, high-efficiency wastewater lifting solution designed specifically for toilets located below the municipal sewer line or far from the main drainage system.



The unit features additional reserved inlet connections on the top or side of the tank, allowing it to be connected simultaneously to:

Basins

Showers

Bidets

Other sanitary appliances

This makes it an ideal choice for complete bathroom drainage requirements in both residential and commercial environments.



Widely used in:

Basements

Metro stations

Underground commercial areas

Low-lying washrooms

The Toilet Sewage Lifter provides reliable and efficient wastewater discharge in environments where gravity drainage is not possible.



Product Features



1. Silent Operation

The Toilet Sewage Lifter adopts advanced noise-reduction technology, ensuring quiet performance.

Operating noise level: < 60 dB

This significantly minimizes disturbance during drainage, making it especially suitable for homes, hotels, offices, and public restrooms where a quiet environment is required.



2. Waterproof & Sealed Construction

The unit is built with:

Double sealing technology

High-quality waterproof connectors

These features ensure:

Long-term reliable operation in humid environments

Complete protection against leakage

Enhanced hygiene and safety of the surrounding area

Stable operation even in continuous-use conditions



Toilet Sewage Lifter – Product Specifications

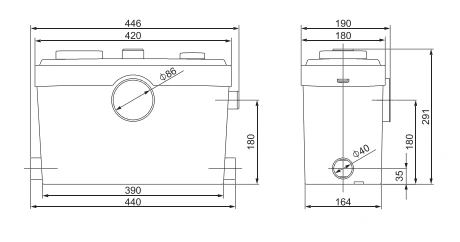

1.Mini Lift 450W +1
Product Description
A compact wastewater lifter designed for toilets, equipped with a single inlet port. It can be installed inside the wall or behind the toilet for exposed installation.





Packaging Information



Item

Data

Quantity/Carton

1 PCS/CTN

Gross / Net Weight

6 / 5.2 kg

Packing Size

28.5 × 23.1 × 35 cm

20FT Container

1330 PCS

40FT Container

2914 PCS

40HQ Container

3282 PCS



product-1-1





Technical Specifications



Specification

Value

Voltage

220–240V, 50Hz

Power

450W

Insulation Grade

F

Speed

2850 RPM

Noise Level

< 45 dB

Protection Grade

IP55

Start Water Level

80 mm

Stop Water Level

30 mm

Maximum Flow Rate

125 L/min

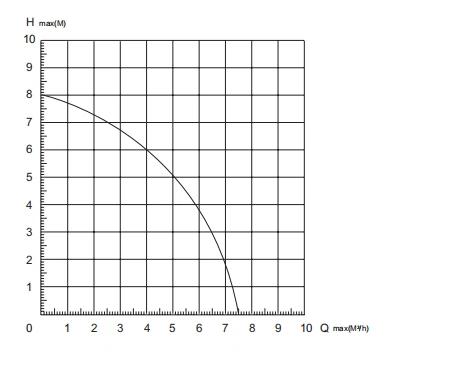

Maximum Head

8 m



product-1-1

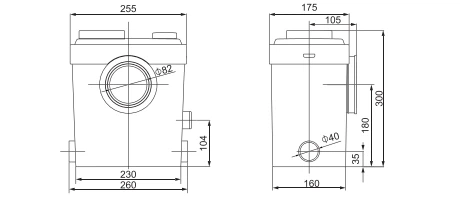

2.Mini Lift 450W +3
Product Description
A larger-capacity wastewater lifter with a powerful cutting system, featuring a side-entry toilet port and three additional inlets for washbasin, shower, and mop sink.





Packaging Information



Item

Data

Quantity/Carton

1 PCS/CTN

Gross / Net Weight

6.8 / 5.8 kg

Packing Size

46.3 × 21.2 × 35 cm

20FT Container

900 PCS

40FT Container

1878 PCS

40HQ Container

2165 PCS



product-1-1





Technical Specifications



Specification

Value

Voltage

220–240V, 50Hz

Power

450W

Insulation Grade

F

Speed

2850 RPM

Noise Level

< 45 dB

Protection Grade

IP55

Start Water Level

75 mm

Stop Water Level

30 mm

Maximum Flow Rate

125 L/min

Maximum Head

8 m



product-1-1

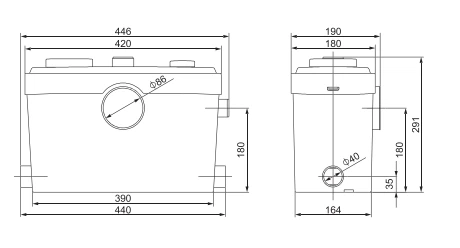

3.Mini Lift 600W +2
Product Description
A larger-sized wastewater lifter with a powerful cutting system, featuring a toilet connection port plus two reserved inlets for washbasin, shower, or mop sink.





Packaging Information



Item

Data

Quantity/Carton

1 PCS/CTN

Gross / Net Weight

7.5 / 6.5 kg

Packing Size

46.2 × 25.4 × 35.1 cm

20FT Container

756 PCS

40FT Container

1556 PCS

40HQ Container

1765 PCS



product-1-1





Technical Specifications



Specification

Value

Voltage

220–240V, 50Hz

Power

600W

Insulation Grade

F

Speed

2850 RPM

Noise Level

< 45 dB

Protection Grade

IP55

Start Water Level

65 mm

Stop Water Level

35 mm

Maximum Flow Rate

125 L/min

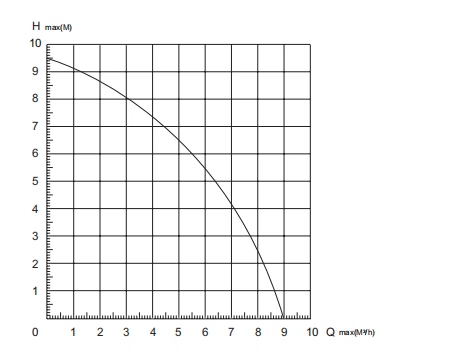

Maximum Head

9.5 m



product-1-1

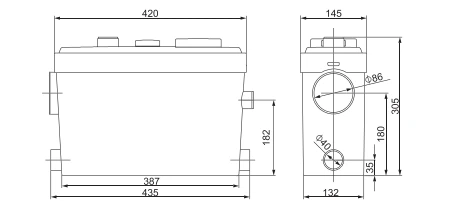

4.Mini Lift 600W +3
Product Description
A large-capacity wastewater lifter equipped with a powerful cutting system, featuring a toilet connection port and three additional inlets for full bathroom drainage.





Packaging Information



Item

Data

Quantity/Carton

1 PCS/CTN

Gross / Net Weight

7.5 / 6.5 kg

Packing Size

46.2 × 25.4 × 35.1 cm

20FT Container

756 PCS

40FT Container

1556 PCS

40HQ Container

1765 PCS



product-1-1





Technical Specifications



Specification

Value

Voltage

220–240V, 50Hz

Power

600W

Insulation Grade

F

Speed

2850 RPM

Noise Level

< 45 dB

Protection Grade

IP55

Start Water Level

65 mm

Stop Water Level

35 mm

Maximum Flow Rate

150 L/min

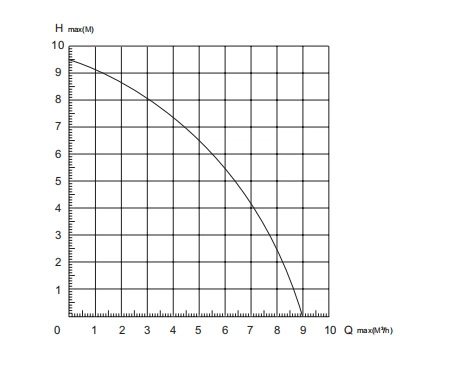

Maximum Head

9.5 m



product-1-1



5.Mini Lift 750W +3
Product Description
A high-lift wastewater lifter featuring a powerful cutting system, with one toilet inlet and three additional inlets for washbasin, shower, and mop sink.





Packaging Information



Item

Data

Quantity/Carton

1 PCS/CTN

Gross / Net Weight

7.6 / 6.6 kg

Packing Size

46.2 × 25.4 × 35.1 cm

20FT Container

756 PCS

40FT Container

1556 PCS

40HQ Container

1765 PCS



product-1-1





Technical Specifications



Specification

Value

Voltage

220–240V, 50Hz

Power

750W

Insulation Grade

F

Speed

2850 RPM

Noise Level

< 45 dB

Protection Grade

IP55

Start Water Level

65 mm

Stop Water Level

35 mm

Maximum Flow Rate

160 L/min

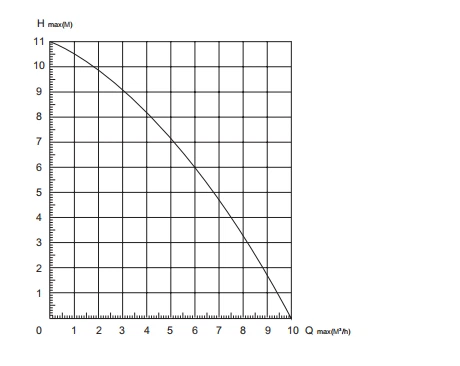

Maximum Head

11 m



product-1-1
