Product Introduction

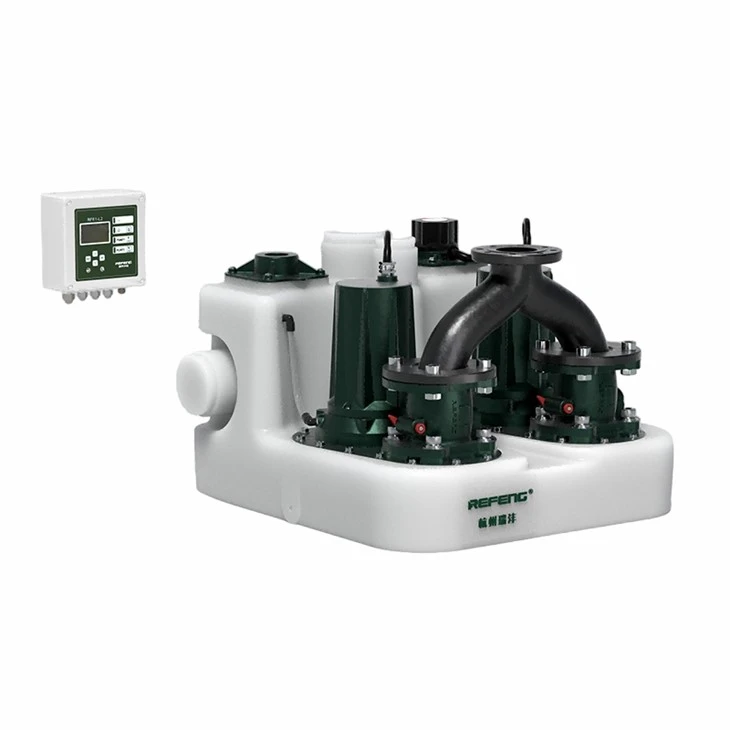

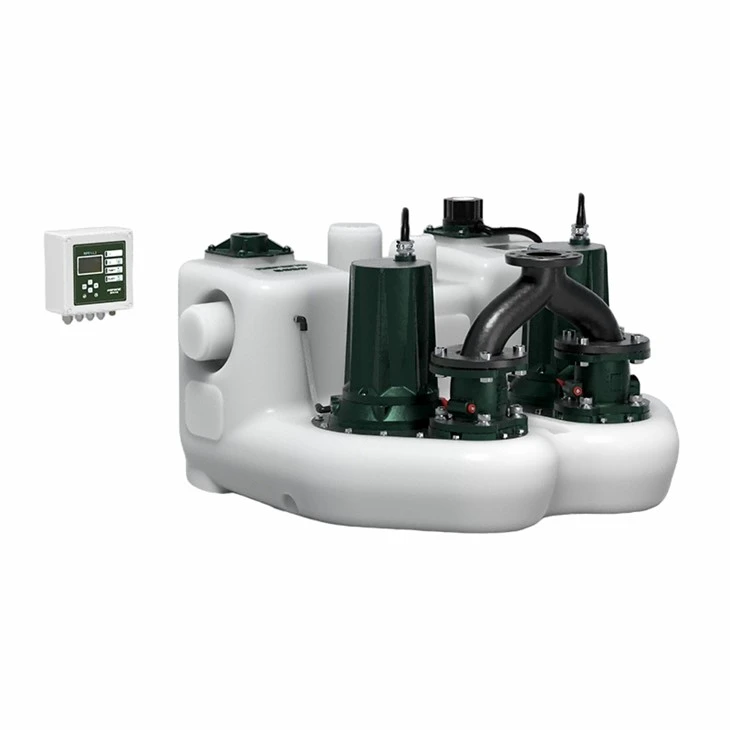

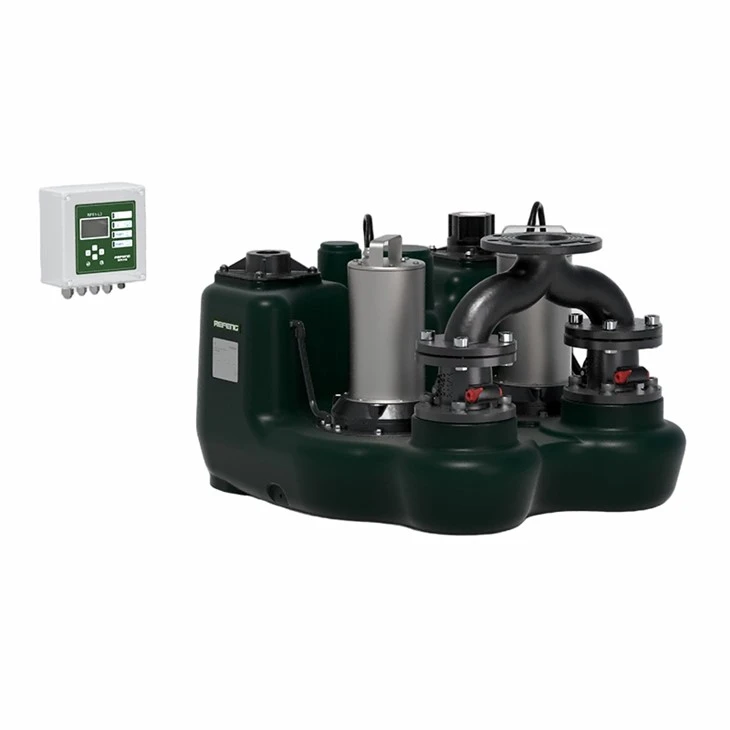

The DPX Series External Double Pump Large Sewage Lifting Device is a heavy-duty, highly reliable sewage treatment solution designed for underground and low-lying areas. Ideal for use in commercial buildings, the device ensures effective sewage pumping from toilets, kitchens, laundries, and other facilities. The system features a dual pump setup for seamless operation, even during peak loads or in the event of a pump failure.
Key Features
Efficient Dual Pump System
The device is equipped with two high-performance pumps. These pumps operate in a one-in-one-standby configuration, alternating to maximize the lifespan of the system. During times of high sewage flow or when one pump fails, the standby pump automatically engages, ensuring uninterrupted sewage lifting and preventing overflow.
Closed Design for Odor Control
The pump station features a fully enclosed design that prevents odors and maintains a clean environment. An exhaust pipe on the top of the box connects to the building's ventilation or drainage system, ensuring proper ventilation and preventing pressure buildup.
Intelligent Control System
The built-in intelligent control system continuously monitors water levels using pressure sensors. The system automatically starts and stops the pump based on the water level. When the water level reaches the preset height, the pump activates automatically, and when the level drops, the pump stops, ensuring efficient and reliable operation.
Vortex Impeller Design
Equipped with a vortex impeller that offers excellent flow capacity. The device also offers an optional cutting impeller for dealing with more challenging sewage conditions.
Benefits
Reliable Operation
With a dual pump system, you are ensured of reliable operation, even during peak flow conditions or in case of pump failure. The system switches automatically to ensure continuous sewage discharge.
Efficient and Environmentally Friendly
The closed design and exhaust pipe system prevent unpleasant odors, while maintaining a clean and safe environment. Ventilation is optimized to prevent pressure buildup inside the system.
Easy Maintenance
The automatic control system reduces the need for manual monitoring. Additionally, the system's durable construction and efficient design minimize downtime and repair costs.
Smart Control
The intelligent control system ensures energy-efficient operation, saving both electricity and operational costs. It also reduces wear and tear on the pumps by regulating their usage.
Applications
Commercial Buildings
Ideal for sewage lifting in commercial buildings, especially in underground spaces or low-lying areas where gravity drainage is not feasible.
Residential Buildings
Suitable for residential developments, including multi-story homes, apartment complexes, and industrial facilities.
Industrial Sewage Systems
Efficiently handles sewage from industries, warehouses, and factories with large drainage needs.
Product Model and Specifications
DPX75-750 External Double Pump Large Sewage Lifting Device
|
Model |
DPX75-750 |
|
Technology |
Pump speed: 2900 r/min |
|
Materials |
Pump housing: Stainless steel or aluminum |
|
Liquid |
Liquid temperature range: 0 - 40°C |
|
Water Tank |
Water inlet (180 mm): Total effective capacity: 40L |
|
Electrical Data |
Input power (P1): 1.0 kW |
|
Controller |
Main control: Micro air pressure sensor |
|
Installation & Transportation |
Ambient temperature range: 0 - 45°C |
DPX75-1100 External Double Pump Large Sewage Lifting Device
|
Model |
DPX75-1100 |
|
Technology |
Pump speed: 2900 r/min |
|
Materials |
Pump housing: Stainless steel or aluminum |
|
Liquid |
Liquid temperature range: 0 - 40°C |
|
Water Tank |
Water inlet (180 mm): Total effective capacity: 40L |
|
Electrical Data |
Input power (P1): 1.5 kW |
|
Controller |
Main control: Micro air pressure sensor |
|
Installation & Transportation |
Ambient temperature range: 0 - 45°C |
DPX75-1500 External Double Pump Large Sewage Lifting Device
|
Model |
DPX75-1500 |
|
Technology |
Pump speed: 2900 r/min |
|
Materials |
Pump housing: Stainless steel, aluminum, or cast iron |
|
Liquid |
Liquid temperature range: 0 - 40°C |
|
Water Tank |
Water inlet (180 mm): Total effective capacity: 40L |
|
Electrical Data |
Input power (P1): 1.9 kW |
|
Controller |
Main control: Micro air pressure sensor |
|
Installation & Transportation |
Ambient temperature range: 0 - 45°C |
DPX75-2200 External Double Pump Large Sewage Lifting Device
|
Model |
DPX75-2200 |
|
Technology |
Pump speed: 2900 r/min |
|
Materials |
Pump housing: Aluminum or cast iron |
|
Liquid |
Liquid temperature range: 0 - 40°C |
|
Water Tank |
Water inlet (180 mm): Total effective capacity: 40L |
|
Electrical Data |
Input power (P1): 2.9 kW |
|
Controller |
Main control: Micro air pressure sensor |
|
Installation & Transportation |
Ambient temperature range: 0 - 45°C |
